Hull complete , NMS

Plans for the new Nauset Marsh Skiff.

Hull has been sheathed with epoxy and fiberglass cloth, primed, and painted with a custom mixed Epifanes 2-part poly urethane paint.

Strip planked side decks and flotation have been installed , custom console is modeled, Yeti cooler in place.

Here's the finished boat , out in Wellfleet Harbor. More photos on the Old Wharf Facebook page.

This is the first Swampscott dory, built in 1978 for Dr. and Mrs. Kite. I built another one, #7, for their son in 2013.

Here is a detail shot of the last Swampscott I built- locust stem and breasthook , Cedar topsides planking, Marine ply garboards, copper riveted, Oak rub rails.

Here's the boat, finished except for the final oiling of the bare wood.

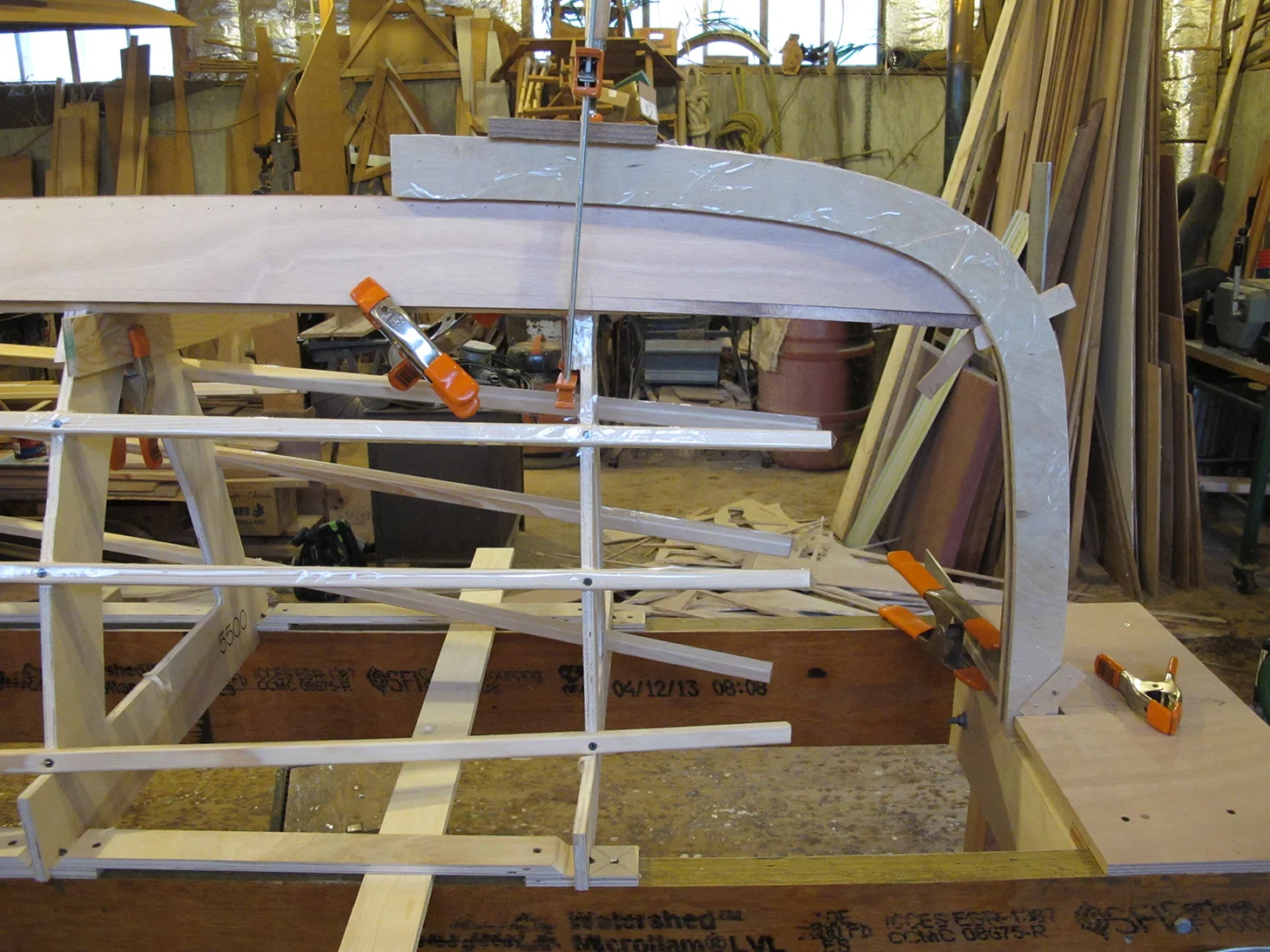

Garboard of the 650D in place. This light weight racing boat has no timber stem, so the stem jig keeps it all lined up.

The 650D all planked up and off the jig

All painted up  in Dutch orange, ready for oarlocks and sliding seat.

Out for a test row.

The Drake 19 is a cruising row boat  designed by Clint Chase . Here the stems and keel have been fabricated and installed in the building jig, and the garboards have been fit and fastened.

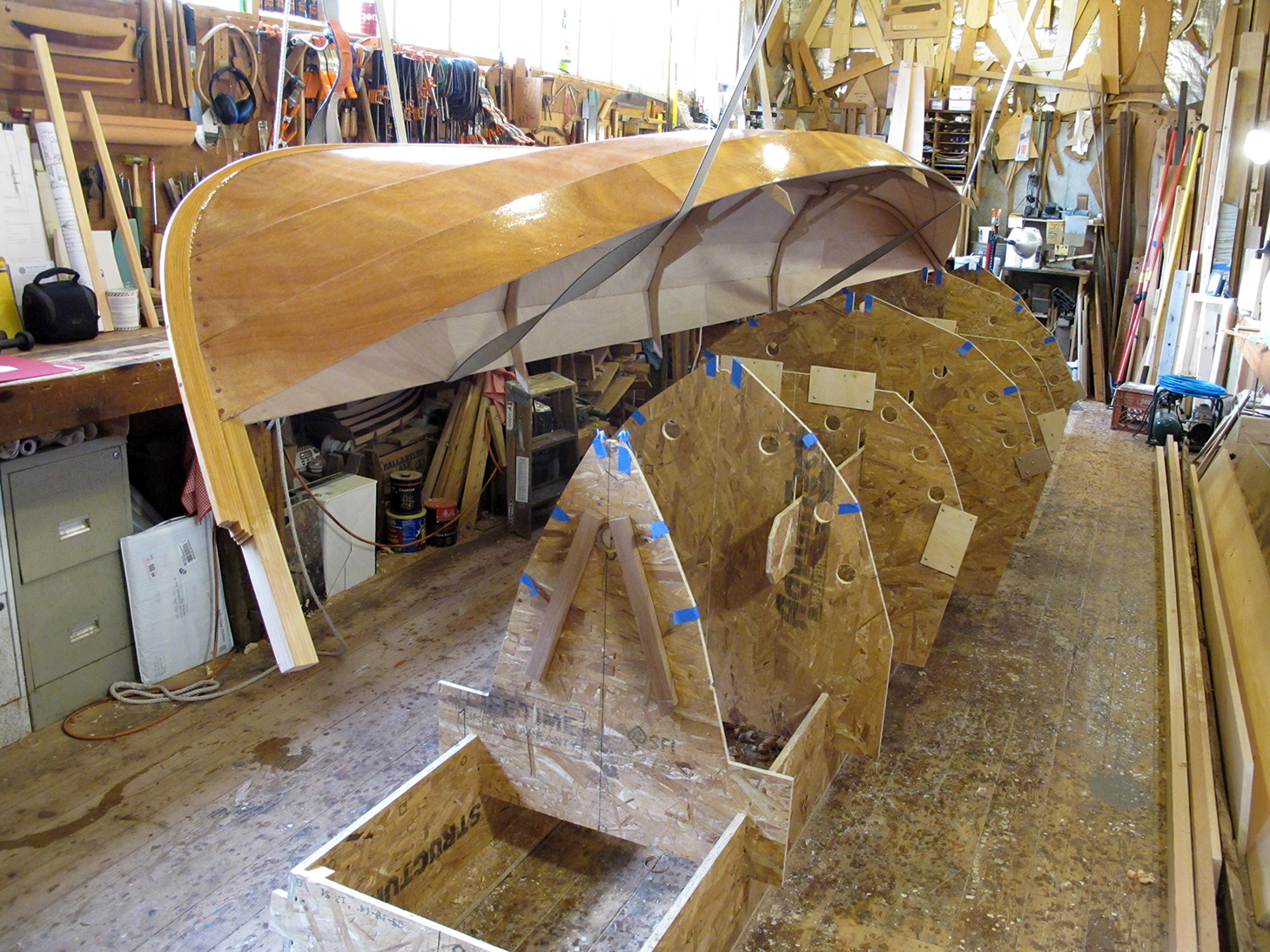

The boat has been planked, epoxy coated, and is being lifted off the building jig.

Foredeck framing.

All painted .

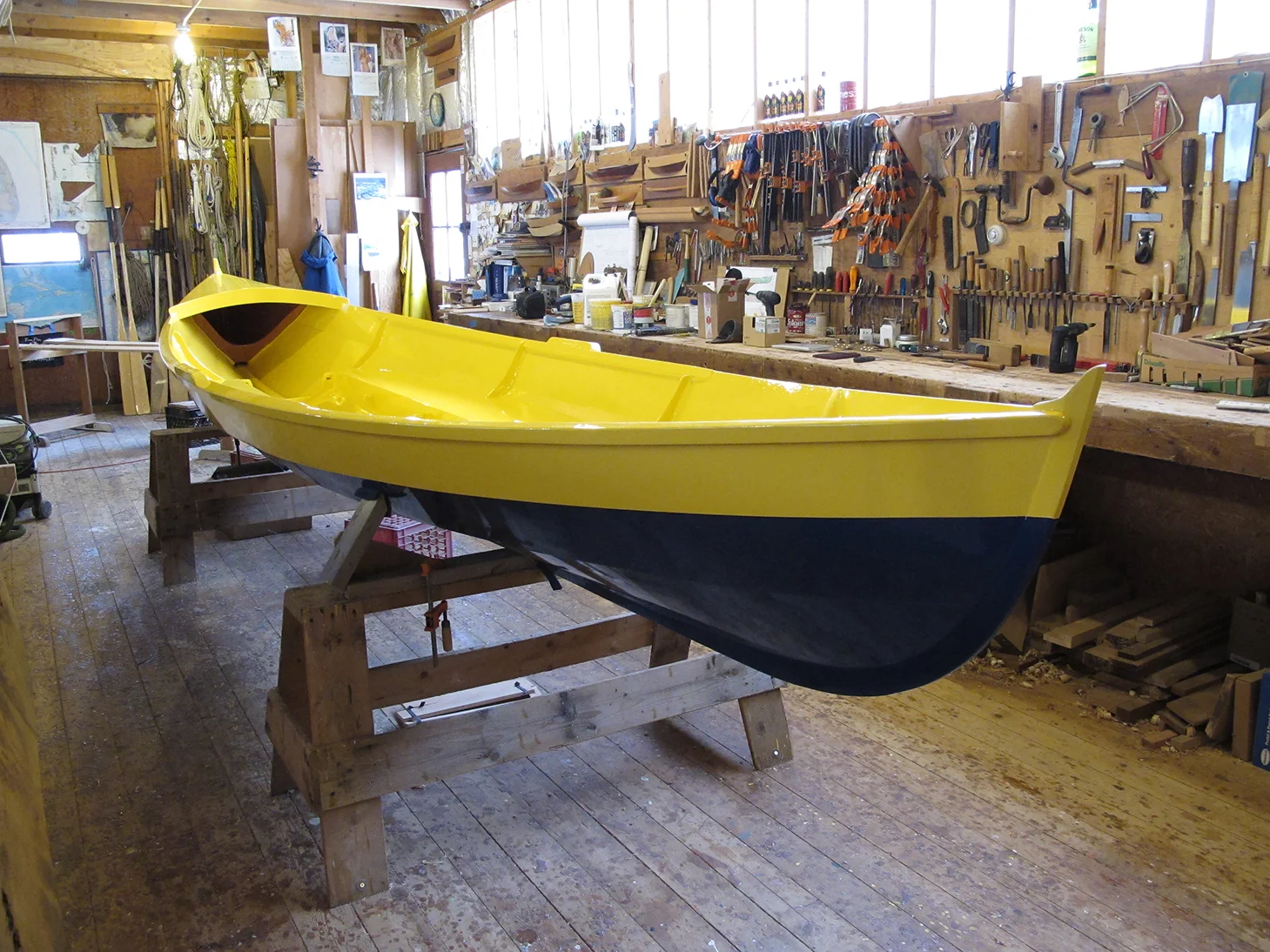

Here's the Drake 19 fully finished, ready to go.
